Electric Pumps
COK pumps
with higher throughput

Submersible pumps of the COK series are designed for use in machine tools for conveying cooling and cutting emulsions as well as cooling oils, particularly in applications where the liquid must flush away significantly larger chips from the workpiece or where the coolant or cutting fluid is circulated through a central filtration station requiring the passage of larger impurities through the pump. The maximum permissible size of impurities is 30 × 10 × 10 mm.

The pumps feature a special flange design for direct mounting onto the tank containing the pumped medium. The temperature of the pumped liquid may range from 0°C to 60°C. As standard, the pumps are finished with a coating of S 2003 synthetic primer paint.

HEAD 5m
FLOW 150l/min
Designer  2

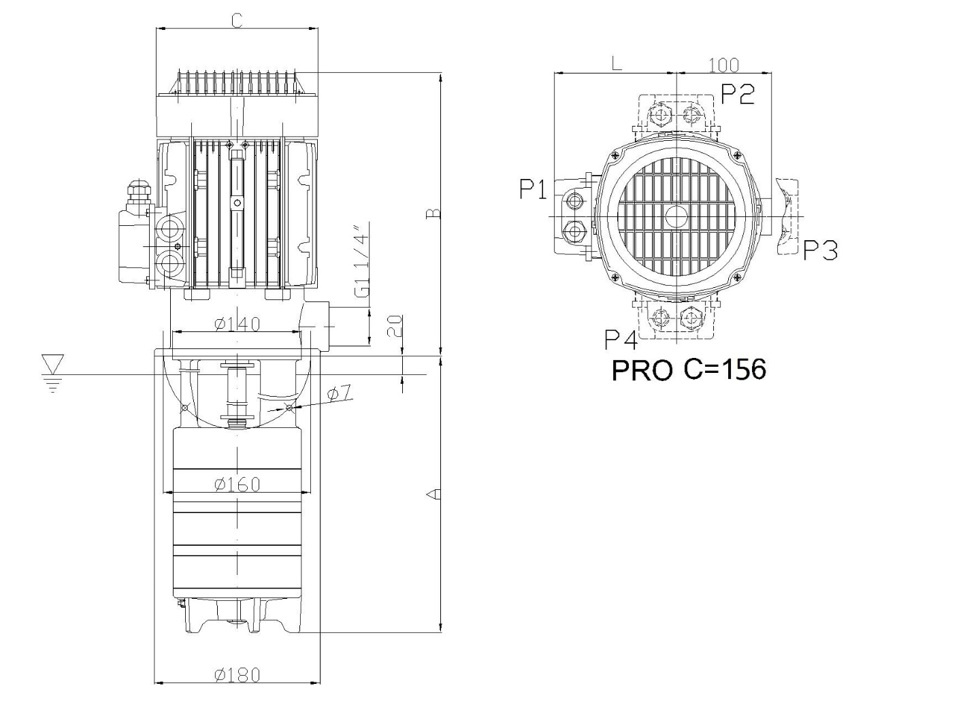

COK Pumps - Technical Data

TYPE PRESURE FLOW POWER DIMENSION
[m] [kPa] A [mm] B [mm] C [mm] L [mm]
5COK 15-20 5 50 150l/min 582W 198 266 156 122
5COK 15-27 5 50 150l/min 582W 268 266 156 122
5COK 15-35 5 50 150l/min 582W 348 266 156 122

Characteristic of COK pumps

Materials

PUMPS PUMP BODY IMPELLER SHAFT
COK CAST IRON STEEL 1.0060
